Sky-EVL 1.7M - New version
The Sky-EV is a 85% RTF, High Performance, Light Weight electro-glider. Powerful brushless motors like the ART-500 made posible to create this super light weight electro-glider. The Sky-E flying weight is approx. 490 grams (17.2 oz.) It features the SD7080 airfoil that was specially modified for this sailplane, the benefit of that are superb thermal abilities and very low stall speed. The Sky wing also could be built as polyhedral wing if desired by the builder.
features:
- composite fuselage pod is made of few layers of fiber glass with glass roving and carbon fiber reinforcements for extra strength. It has removable canopy for rapid access to the radio gear. The V-shaped wing saddle with molded in nuts for the wing mounting bolts.
- tapered tail boom is made of carbon fiber/glass composite.
- wing cores are precision cut from white polystyrene foam, and the black poplar veneer is
bonded to the foam with aircraft industry grade epoxy in high pressure molds for perfect airfoil fidelity and a warp-free wing.
- light weight tail made from balsa is finish sanded, and has pre-hinged control surfaces.

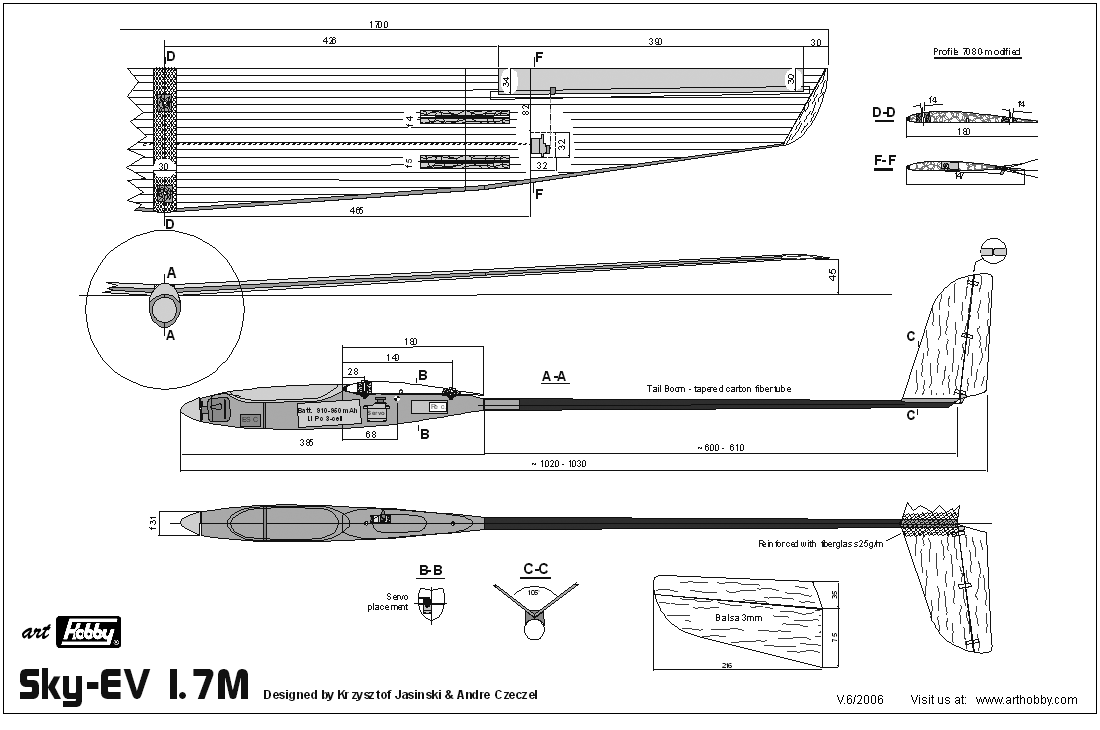

Kit contains: model components, plans, step by step instructions, and all necessary hardware.
Wing span
Length
Wing area
Wing airfoil
Glider weight
1700 mm / 67 in.
~1040 mm / 40.9 in.
23.8 dm2 / 369 sq.in
SD7080 modified
280 g / 9.8 oz.
Recommended
Radio
Receiver
Ailerons servos
Elevator/Rudder
Motor
ESC
Spinner
Propeller
Battery

6+ch.
6+ch. Minima-6E, Maxima-6, similar
HS-65HB, similar
HS-45HB, similar
ART-500
15A
31mm
8x4.5 CAM
450 - 850 mAh 3S LiPo
Sky-EVL 1.7M - New version
#0047
$199.00
Recommended Accessories
#A0031
Qty: 1
$9.00
#A1304
Qty: 4
$2.09
#H00X24
Qty: 2
$3.99
#H33065
Qty: 2
$21.99
#H33045
Qty: 2
$16.99
#M00500
Qty: 1
$24.99
#M01002
Qty: 1
$12.00
#A031S3
Qty: 1
$34.99
#A00845
Qty: 1
$10.99
#M70150
Qty: 1
$34.95
#A1306
Qty: 1
$1.19
#B045075
Qty: 1
$12.99
Replacement Parts
#020A
Qty: 1
$10.00
#060B
Qty: 1
$39.00
#A0026
Qty: 2
$3.59
#020V
Qty: 1
$22.00
#A0014
Qty: 1
$2.80
#047W
Qty: 1
$139.00
#A0035
Qty: 2
$1.00
