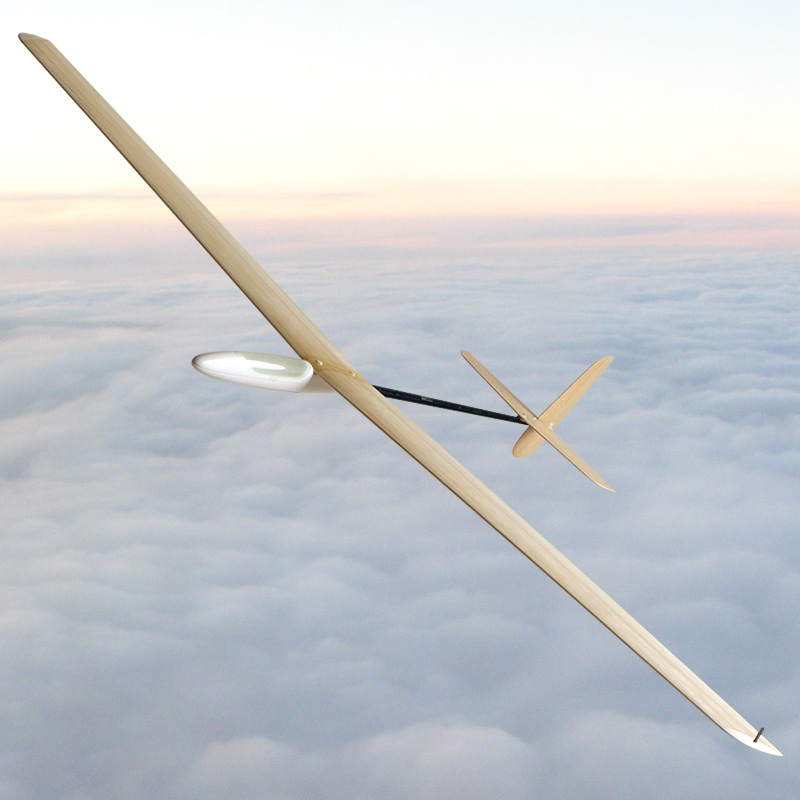

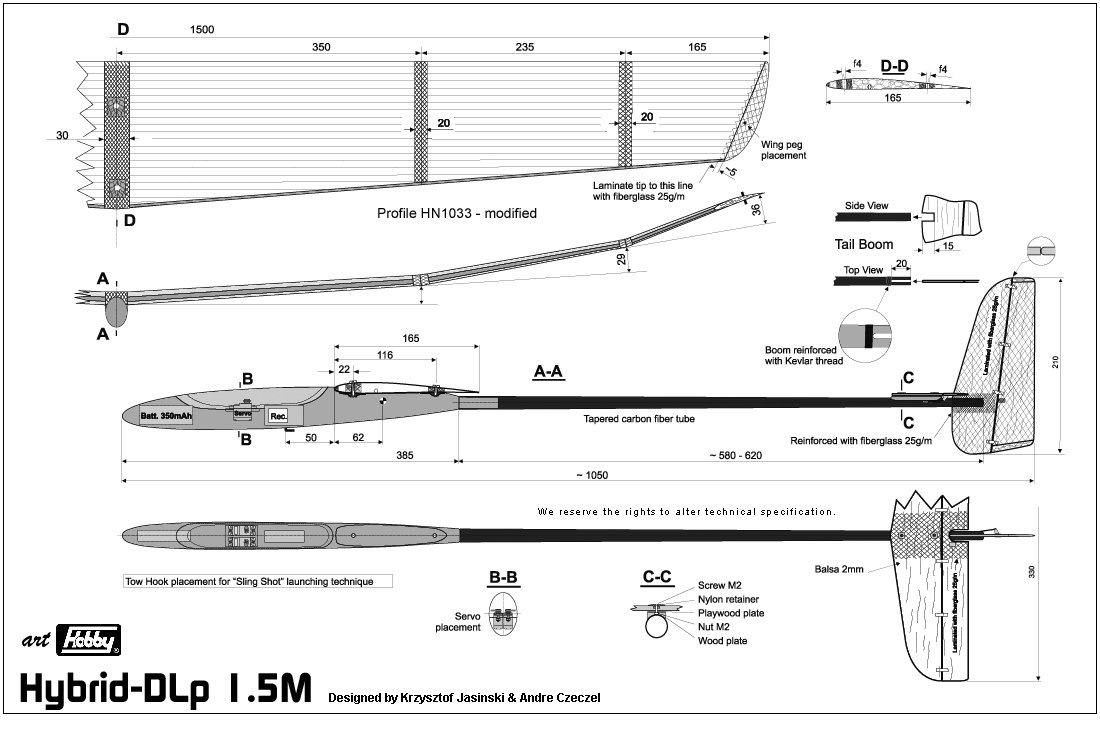

The Hybrid-DL was specially engineered for discus launch enthusiasts. It's a simple, fast assembling, high quality model and superb performer. Hybrid-DL has tapered wings with built-in washout for tip-stall resistant flight characteristics, and lower drag. It features HN1033-modified very thin and fast sailplane airfoil from Europe. Internally reinforced wing is very stiff and could be finished with full span flaperons or just aileron or as a polyhedral wing if desired by the builder.
Hybrid wing also feature internally hinged flaperons/ailerons - NEW.
- Removable horizontal stabilizer with hinged elevator is made from balsa and finish sanded.
- Vertical stabilizer with hinged rudder are made from selected balsa. Lower leading edge of the stabilizer is reinforced with strip of thin plywood to protect it from damage and to add extra strength and stiffness entire surface of the vertical stabilizer and rudder are laminated with very light weight glass cloth.

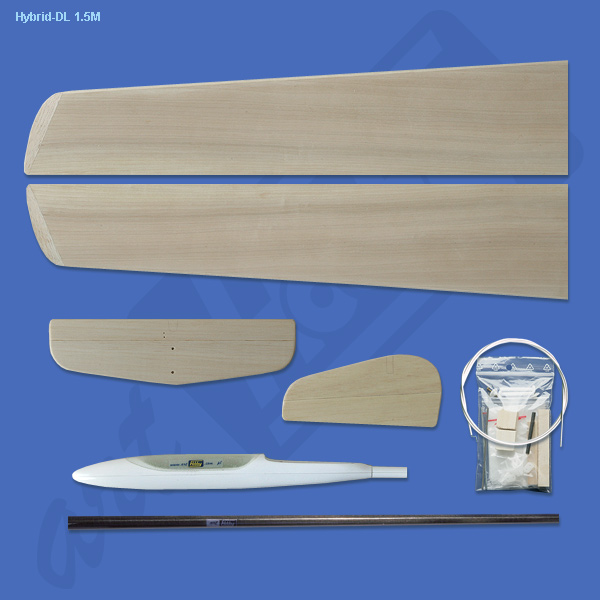

Kit contains:

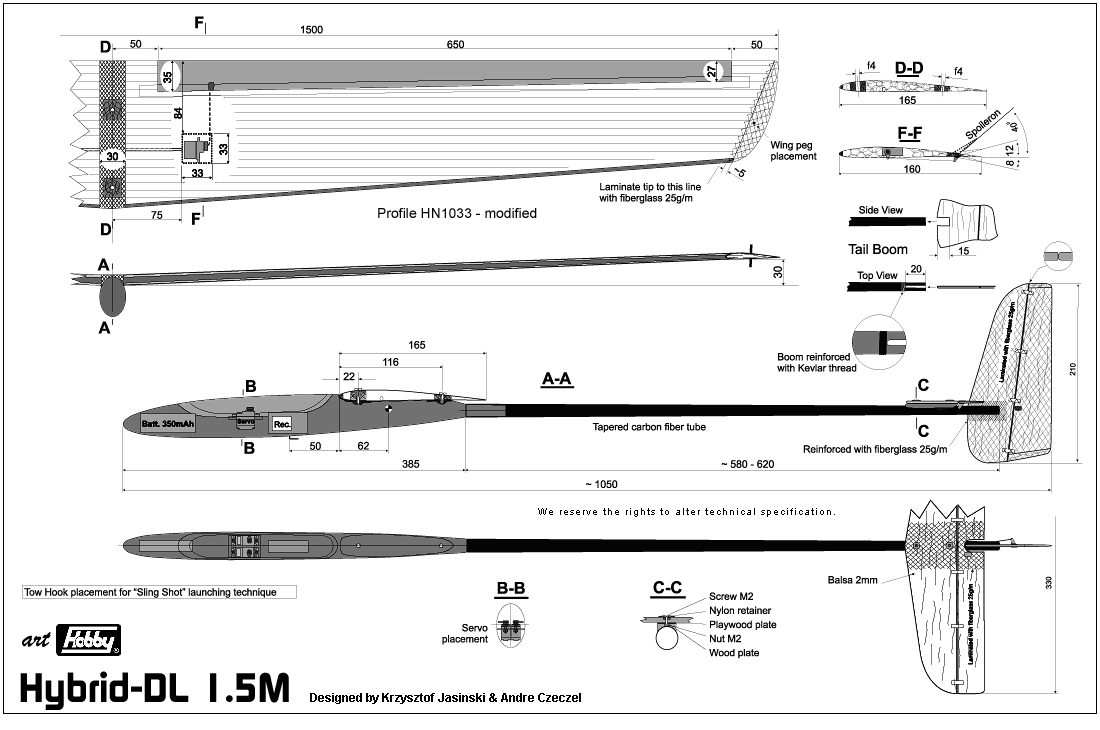

model components, all necessary hardware, drawing and rich illustrated step by step instructions.

Wing span
Length
Glider weight
Wing area
Wing airfoil
1500 mm / 59 in.
1033 mm / 40.6 in.
~240 g / ~8.4 oz.
20.5 dmĀ² / 318 sq.in.
HN1033-modified
Recommended
Radio
Receiver
Ailerons servos
Elevator/Rudder
Battery

6 CH. or more
6 CH. or more
2 x HS-45HB or similar
2 x HS-45HB or similar
800mAh NiMH, 4.8V
or 350mAh LiPo 7.4V with BEC
Hybrid-DL 1.5M
# 0018
$199.00

Recommended Accessories
# A0031
Quantity: 1
$10.00
# H33045
Quantity: 4
$17.99
# H00X12
Quantity: 2
$3.99
# A1304
Quantity: 2
$1.99
# A0800
Quantity: 1
$18.90
# H26612
Quantity: 1
$44.99
Replacement Parts
# 018P
Quantity: 1
$54.00
# 018A
Quantity: 1
$10.00
# 070B
Quantity: 1
$39.00
# A0026
Quantity: 2
$3.50
# 018D
Quantity: 1
$35.00
# A0011
Quantity: 1
$2.20
# 018W
Quantity: 1
$129.00
# A0035
Quantity: 2
$1.00
